- Power Supply(V): 5V
- Minimum Illumination(Lux): 0.1Lux
- Dimensions (L x W x D)(mm): 80*65*130mm
- Installation: Normal
- Model Number: XJ122
- Lens (mm): 3.6mm
- High Definition: 1080P(Full-HD)
- Power Consumption(W): 1.5w
- Alarm Action: Email Photo
- Technology: Infrared
- Viewing Angle (Degree): 70°
- Network Interface: Wi-Fi/802.11/b/g
- Power Supply: Normal
- Supported Operating Systems: Windows Vista,Windows 8,Windows 7,Windows 98,Windows XP
- Connectivity: IP/Network Wireless
- Color: Black
- Sensor: CMOS
- is_customized: No
- Type: IP Camera
- Brand Name: PARASOLANT
- IR Distance(m): 10m
- Supported Mobile Systems: Android,iOS
- Video Compression Format: MJPEG,H.264
- Sensor Brand: SONY
- TF Card: None
- Style: Mini Camera
- Storage: 64GB
- Pixel: 2MP
- HD 720p, 8 million wide angle WiFi wireless remote monitoring!
- High-end master stability which helps the detection of any movement
- Mobile phone short message and alarm lamp functions!!
- Supports night vision, in complete darkness it can shoot to 5 meters, night vision lights will not emit any light and the camera will be in stealth / spy mode
- Supports 8GB 16GB 32GB 64GB card !
- Camera supports real-time monitoring through WiFi or hotspot, but also supports a remote network!
- The back of the camera is magnetic!

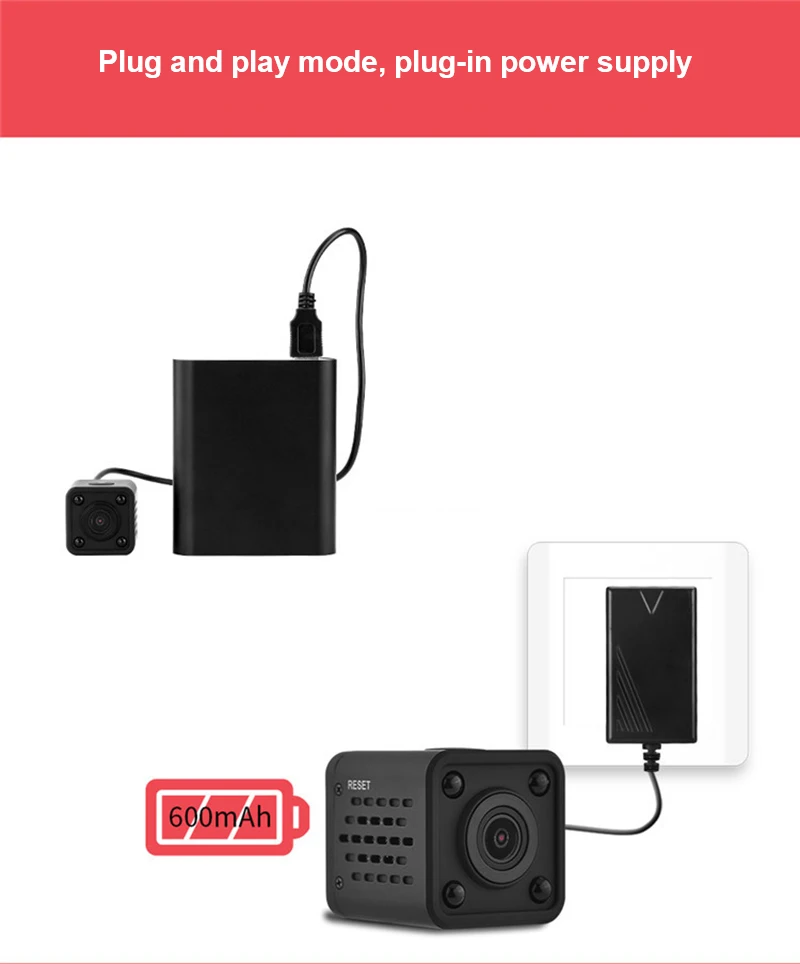

- Using the side charger port you can connect another large capacity memory or battery device
For Android and Apple users, search “HD iCAM” and download the APP from “App Store” or “Google Play”.
Functions of the keys
1, Long press “on/off button”3 seconds to turn on , Long press “on/off button” 5 seconds to turn off.
2. Infrared night vision on / off function: equipment list is equipped with IR indicator; can click to turn on or turn off.
3. Camera function: insert TF card into the camera, the camera will automatically record without any operation. before Pull of TF card,please save the records first (please formatted the card,before inserting TF card)
Camera indicator light state:
Red and blue Double lights alternately flash —— searching for netWord
Red light is always on—— Short range state
Blue light is always on—— long range state
Turn on machine, when Red and blue Double lights disappear, is means Short range state. setting up long distance,blue light always on
Camera reset and connection
You can connect with a charger to the power supply. To reset the device, use a small hard thing to click the “REST key “for about 5 seconds to reset (short range state —- Red light disappear,long range state—blue light disappear ),and then press on/off button to turn on machine again.
In the device list [function options] Select configuration, you can enter the page of configuration to configure the various functions of the device.
1) My Camera: enter to modified device name;
2) device password: enter to modifiy device’s password;
3) WiFi configuration: enter the “WiFi settings” page, select a WiFi and input password to change the device’s WiFi.
4) video resolution: there are three choices of 1080P, 720P and VGA.
5) video mode; full time video, alarm video and disabled.
A) full time video means that the camera can video all the time.
B) alarm video mobile detection or human induction is discovered,camera will start the video
C)Disable It means that the camera does not capture video ;
6)State indicator lamp; click to turn on or turn off device indicator.
7) infrared indicator; click to turn on or turn off the device infrared indicator.
8) format SD card: after entering, click “yes” to operate in SD card.
9) device information: you can view device type, firmware version, storage space, spare space, and power consumption in this list.
8) time setting: can Set device to synchronize with mobile phone time.
9) device time zone: it can be synchronized with the mobile time zone.
|Unable to start||The battery has no electricity, and the battery is open after charging.|
|Video camera cannot open video on line||Check if network is normal / restart router or restart device.|
|Can not be remote / remote online||When WIFI is set, pay attention to password errors or special characters.|
Matters needing attention：
A) use occasions: Please strictly comply with relevant national laws and regulations, and do not use this product for any illegal purposes, otherwise the consequences will be conceited.
B) about batteries: long time no use. Please fill the battery before use and charge at least once a month.
C) working temperature: 0 – 45 degrees Celsius, preferably at room temperature.
D) working humidity: 20% – 80% do not put the product in damp working environment, and the product does not have waterproof function.
E) other items: This is a fragile electronic product, please do not cause it to be subjected to strong impact and vibration. Do not use it under strong magnetic field and strong electric field.
